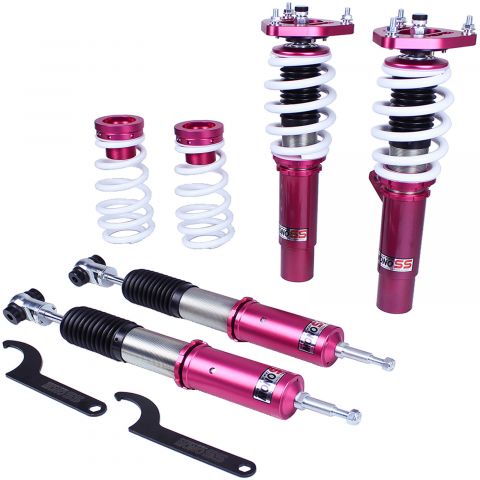

2019-2023 Audi Q3 (F3) MonoSS Coilovers : Godspeed Project MSS0105-H

Compatibility List:

Compatible With Audi Q3 (F3) 2019 2020 2021 2022 2023; Excludes Electronic Suspensions; 49 mm into 54.5 mm sleeve included; Excluded ELECTRONIC SUSPENSIONS
52mm Mono-Tube Stainless Steel Shock With 16 Levels of Damping Adjustment Corresponds to Daily Driving Scene To The Sunday Track
Performance Internal Piston With Koyo Japan 6204z Bearing Provides Smooth Stroke; Powder Coated CNC Machined Aluminum And Carbon Steel Accessories
Independent Spring Tension And Height Adjustment; Racing Grade Shock Oil With High Viscosity Index; Shock Absorber Can Be Rebuild When Worn Out
Full 1 Year Limited Warranty From Date Of Purchase; Install By Experienced Professionals Is Highly Recommended

Affordable priced coilover damper kit features 16 levels of damping adjustment, full length adjustable, and aluminum parts.

Details:

Godspeed Project's MonoSS is our one entity in our family of single-adjustable coilover suspension kits. These coilovers are designed to be a streetable race built coilover at an affordable price. It features a monotube damper that is made out of a carbon seamless steel 52mm tube with a performance internal piston providing maximum damper response. The cold-bent springs are made from high strength SAE9252 steel to optimize the balance between performance and comfort. Using race quality shock oil, Godspeed Project can guarantee exceptional damper performance at any temperature on and off the track. The top of the shock is attached to the car using a high quality top hat that features a high performance Japanese KOYO 6204Z bearing pillow ball mount (when applicable). The bottom shock brackets are made out of a T7075 forged aluminum or carbon steel brackets for lighter weight without sacrificing durability which also includes brake line brackets (when applicable). The MonoSS offers 16 level of damper adjustability which can be set to your preference.

Features:

Front camber plates with pillowball mount for camber adjustment
16 precise levels of damper adjustment
Koyo Japan 6204z bearing
Polyurethane bushing (if applicable)
Monotube shock design
Anodized shock body
Lightweight aluminum lower mount and T7075 forged aluminum / carbon steel brackets
52mm carbon steel shock body with a performance internal piston
Independent ride height and spring preload adjustments
Race shock oil with a high viscosity index
1 Year Warranty from Date of Purchase

Prior to installation, verify all hardware and properly preload suspension to 10mm. Our technical department is available to answer any other questions.

Additional Information:

Special Notes Prior to installation, verify all hardware and properly tighten and spring preload is set to 5-10mm(1/4-3/8in). Our technical department is available to answer any other questions.
Damping Levels 16-Level
Height Adjustment Yes
Spring Rate(Front) 8 kg/mm (448 lbs/inch)
Spring Rate(Rear) 5 kg/mm (280 lbs/inch)
Spring Length(Front) 160 mm
Spring Length(Rear) 210 mm
Front Top Mount Yes, Pillow Ball Camber Plate
Rear Top Mount No, Reuse Factory
Spring Inner Diameter(Front) 62 mm (2.44 inch)
Spring Inner Diameter(Rear) 62 mm (2.44 inch)
Warranty Note No
User Guide Coilover User Guide
