Compatible With Toyota Camry (XV30) 2002 2003 2004 2005 2006
52mm Mono-Tube Stainless Steel Shock With 16 Levels of Damping Adjustment Corresponds to Daily Driving Scene To The Sunday Track
Performance Internal Piston With Koyo Japan 6204z Bearing Provides Smooth Stroke; Powder Coated CNC Machined Aluminum And Carbon Steel Accessories
Independent Spring Tension And Height Adjustment; Racing Grade Shock Oil With High Viscosity Index; Shock Absorber Can Be Rebuilt When Worn Out
Full 1 Year Limited Warranty From Date Of Purchase; Installation By Experienced Professionals Is Highly Recommended
Affordable priced coilover damper kit features 16 levels of damping adjustment, full length adjustable, and aluminum parts.
Details:

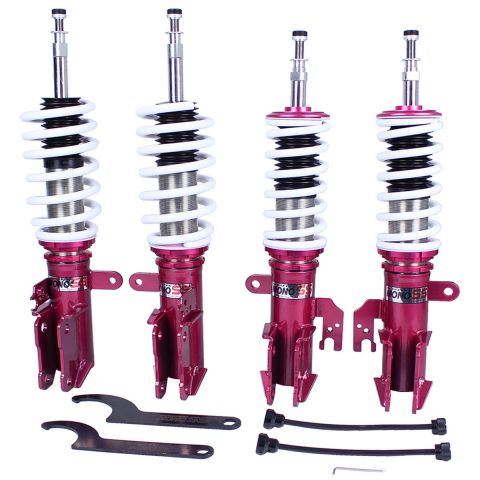

2002-06 Toyota Camry (ACV30/MCV30) MonoSS Coilover Suspension.
Godspeed Project's MonoSS is our one entity in our family of single-adjustable coilover suspension kits. These coilovers are designed to be a streetable, race-built coilover at an affordable price. It features a monotube damper made out of a carbon seamless steel 52mm tube with a performance internal piston providing maximum damper response. The cold-bent springs are made from high strength SAE9252 steel to optimize the balance between performance and comfort. Using race quality shock oil, Godspeed Project guarantees exceptional damper performance at any temperature on and off the track.
The top of the shock is attached to the car using a high quality top hat featuring a high performance Japanese KOYO 6204Z bearing pillow ball mount (when applicable). The bottom shock brackets are made out of T7075 forged aluminum or carbon steel for lightweight durability, also including brake line brackets (when applicable). The MonoSS offers 16 levels of damper adjustability which can be set to your preference.
Key Features:
16 precise levels of damper adjustment
Koyo Japan 6204z bearing
Polyurethane bushing (if applicable)
Monotube shock design
Anodized shock body
Lightweight aluminum lower mount and T7075 forged aluminum / carbon steel brackets
52mm carbon steel shock body with a performance internal piston Independent ride height and spring preload adjustments
Race shock oil with a high viscosity index
1 Year Warranty from Date of Purchase
Applications:
2002, 2003, 2004, 2005, 2006 Toyota Camry (ACV30/MCV30)
Additional Information:
Special Notes: Prior to installation, verify all hardware and properly tighten. Spring preload should be set to 5-10mm (1/4-3/8in). Technical support available.
Damping Levels: 16-Level
Height Adjustment: Yes
Spring Rate (Front): 8 kg/mm (448 lbs/inch)
Spring Rate (Rear): 5 kg/mm (280 lbs/inch)
Spring Length (Front): 200 mm
Spring Length (Rear): 230 mm
Front Top Mount: No, Reuse Factory
Rear Top Mount: No, Reuse Factory
Spring Inner Diameter (Front): 62 mm (2.44 Inch)
Spring Inner Diameter (Rear): 62-88 mm (2.44-3.46 Inch)
